FLO-MATRIX HVAC 12x2 FXP Plenum Box

• Lead-time: 3 business days depending on order volume (please contact for lead-time confirmation )
• Versatile 9" overall height suitable for confined space installations
• FXP Plenum series is designed in Canada by FLO-MATRX HVAC
• Specifically for HVAC professionals and commercial use
• Various selections of inlet sizes and configurations
• Full size standard outlet to fit typical air vents
• This is a professional custom product, no returns or exchanges

This plenum fits the following Products:

• Compatible List of 12x2 - Air Grilles, Registers and Diffusers

Dimensions

• Inlet Configuration: Centered, as shown

• Overall Nominal Dimension:
  12.2" x 4.6" x 9" (L x W X H)
  plus 3" inlet extension
• Rough Outlet Size: 12" x 2"  ( 2" Depth )


This is a professional custom product
Made to order
No returns or exchanges

Specifications

• FXP Linear Slot Plenums constructed with 24 Gauge G90 ( 0.6mm thk. Z275 ) grade Galvanized Steel
• Available in Low VOC, fiber-free, non-particulating, closed-cell elastomeric foam insulation for HVAC systems
• Side mounting holes allow quick installation and sheetrock (drywall) alignment
• Can be used for supply air or ducted returns
• Fits linear slot diffusers and grilles up to 2" depth

This is a professional custom product
Made to order
No returns or exchanges

Files

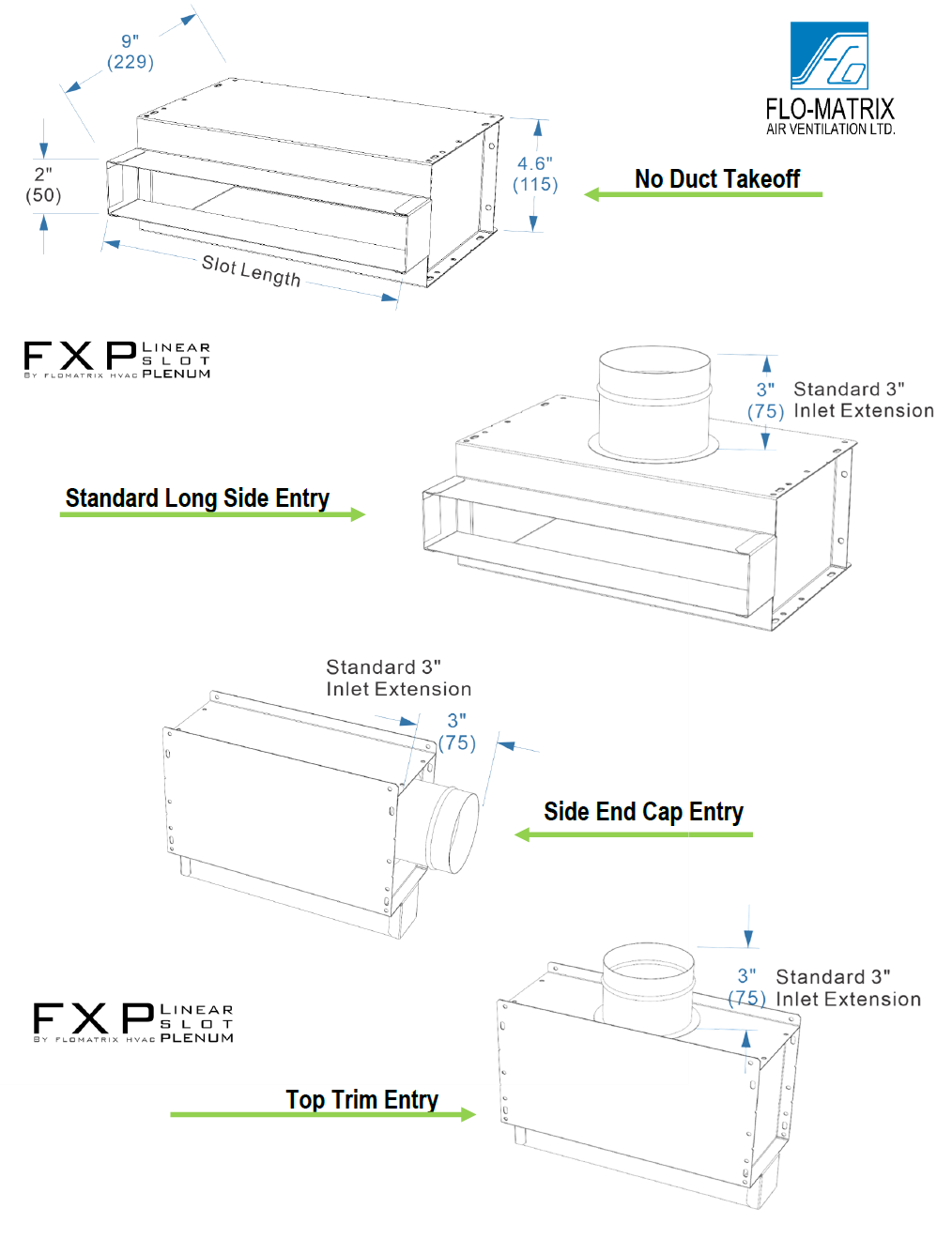

Duct connects configurations

Videos
