FLO-MATRIX 16"x2" Linear Slot Diffuser 1" (25mm) 1-Slot - Matte Black WASD25-1
FLO-MATRIX 16"x2" Linear Slot Diffuser 1" (25mm) 1-Slot - Matte Black WASD25-1
In stock
SKU:FWASD25-1/81W/434L/005

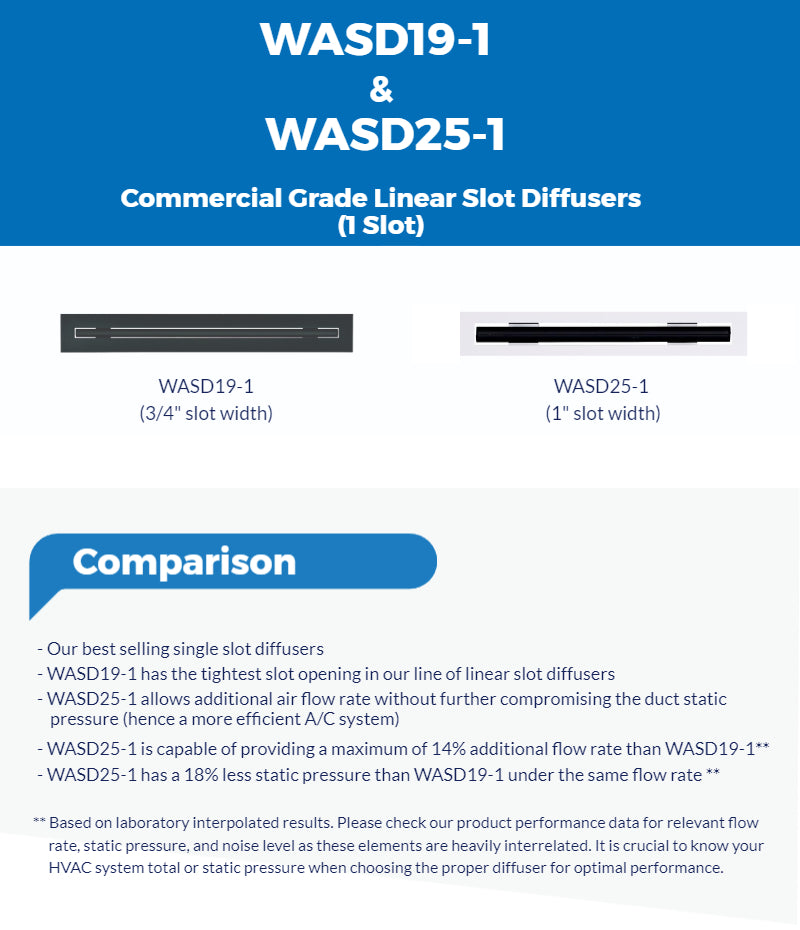

FLO-MATRIX HVAC - 16"x2" linear slot diffusers are architectural grade made with solid extruded aluminum where durability is a major concern. They are ideal for general air distribution and VAV applications. The 25mm ; 1" slot width is equipped with adjustable blades for up to a 180° air pattern. Please watch our smoke test video below for air distribution performance. We recommend installation by professionals for this product.
Nominal Size: | 16" X 2" (Neck) |
Slot Width: | 1" inch (25mm) |
Material: | Extruded Aluminum |
Finish: | Matte Black Powder Coated |
Usage: | Commercial and Residential |
Other Lengths: | 12", 16", 18", 20", 22", 24", 32", 36", 48", 60", 72", 96" |
Plenum Size: | FLO-MATRIX FXP Plenum 16"x2" (Recommended) |
Tested In Accordance To:
ASHRAE 70
ADC1062R4
**Please note that our products do not include fasteners
Installation:
- There are no pre-drilled holes on the surface
- Fastening must be done on the inner border sides for an aesthetic appearance.
- Contact us for customizable plenum box options
Product Location:
Ships from Vancouver, Canada. Shipping to USA takes 2-7 business days after dispatch (depends on delivery address)
Performance
Basic Data | ||
---|---|---|
Flowrate (CFM) |
Static Pressure (in.wg) |
NC Level |
58 | 0.09 | 20 |
91 | 0.21 | 30 |
121 | 0.37 | 40 |
* Flow rate (CFM) and static pressure (in.wg) are interrelated. It is crucial to know your HVAC system total or static pressure when choosing the proper GRD for optimal performance. |
What constitutes commercial grade grilles, registers, and diffusers (GRD)?
A commercial grade product should have a complete set of technical data that would assist architects, engineers, and HVAC professionals to select the proper products for their projects. A standard commercial product should have the following information:
- Listed specific material and grade used as the primary composition material
- Comprehensive product performance data: flow rate, static pressure, noise level and more
- For project specific enquires regarding our products, please contact our product specialists at +1-604-437-1527.
Additional Details:
- Time-proven (Since 1997) professional & commercial grade linear slot diffusers made with 6063-T5 Grade Extruded Aluminum. This type of aluminum has a relatively high tensile properties, provides excellent finishing characteristics and is highly resistant to corrosion.
- This product is tested in accordance to: ADC1062:GRD-84 (ADC1062R4) and ASHRAE 70-2006 “Method of Testing the Performance of Air Outlets and Air Inlets (ANSI approved)”.
- Our air ventilation products are constantly under research and redevelopment utilizing today’s testing standards and computational fluid dynamics simulation (CFD) energy models.
- Rich powder coated finish with a strong aluminum profile and reinforced tig-welds prevent cracking, chipping and bent corners. Our linear slot diffusers include a weather stripping seal to prevent ceiling smudging caused by some substandard performance air vents with air leakage issues.
- We have been producing quality 1 to 12 slots linear diffusers for the HVAC industry since 1997.
Videos
Downloads
FWASD25-1 Slot Diffuser Submittal
Linear slot specifications FWASD-25.txt
